ROS之命令与编程实践

参考资料

• 古月居ROS21讲
• ROSwiki

ROS命令行概述

• roscore启动命令

• rosrun

  rosrun [package_name] [node_name] #允许你使用包名直接运行一个包内的节点(而不需要知道这个包的路径)。

• rosls

  rosls是rosbash命令集中的一部分，它允许你直接按软件包的名称而不是绝对路径执行ls命令(罗列目录).

  rosls beginner_tutorials/
  CMakeLists.txt  include  package.xml  src

• roscd log

  使用roscd log可以切换到ROS保存日记文件的目录下。需要注意的是，如果你没有执行过任何ROS程序，系统会报错说该目录不存在。

• rosed

  rosed 是 rosbash 的一部分。利用它可以直接通过package名来获取到待编辑的文件而无需指定该文件的存储路径了。

  rosed [package_name] [filename]

  这个实例展示了如何编辑roscpp package里的Logger.msg文件。

• rospack命令

  rospack允许你获取软件包的有关信息

  rospack find roscpp
  /opt/ros/kinetic/share/roscpp

  $ rospack list 　　　　　　　　　　　　　　   #显示出当前的包信息

  $ rospack depends1 beginner_tutorials  　　    #显示当前包的一级依赖

  $ rospack depends beginner_tutorials 　　　　#显示当前包的所有依赖

• rqt

  rqt_graph   #显示计算图

• rosnode

  rosnode ping  节点名 #测试节点的联通情况
  rosnode list  #显示全部节点
  rosnode info  节点名  #显示节点信息
  rosnode machine #显示当前机器
  rosnode kill  节点名  #结束一个正在运行的node
  rosnode cleanup #清除无法访问的节点的注册信息

• rostopic

  rostopic bw	    #显示主题使用的带宽
  rostopic delay	#从标题中的时间戳显示主题的延迟
  rostopic echo	#将消息打印到屏幕,可以显 示在某个话题上发布的数据.
  rostopic find	#按类型查找主题
  rostopic hz	    #显示主题的发布率
  rostopic info	#打印有关活动主题的信息
  rostopic list	#列出活动主题
        -h, --help                 #(显示此帮助消息并退出)
        -b BAGFILE, --bag=BAGFILE  #(列出.bag文件中的主题)
        -v, --verbose              #(列出每个主题的完整详细信息)
        -p                         #(仅列出发布商)
        -s                         #(仅列出订阅者)
        --host                     #(按主机名分组)
  rostopic pub	#将数据发布到主题
  rostopic type	#打印主题或字段类型,命令用来查看所发布话题的消息类型。

• rostopic pub

  $ rostopic pub /turtle1/cmd_vel geometry_msgs/Twist -r 1 -- '[2.0, 0.0, 0.0]' '[0.0, 0.0, 1.8]'
  #发送一条消息给turtlesim，告诉它以2.0大小的线速度和1.8大小的角速度开始移动。
  #这条命令以1Hz的频率发布速度命令到速度话题上。

  $ rostopic pub -r 10 /turtle1/cmd_vel geometry_msgs/Twist"linear:
  x:1.0
  y:0.0
  z:0.0
  angular:
  x:0.0
  y:0.0
  z:0.0"

  #/turtle1/cmd_vel话题名
  #geometry_msgs/Twist消息结构
  #-r 表示循环

• rostopic hz

  $ rostopic hz /turtle1/pose
  subscribed to [/turtle1/pose]
  average rate: 62.486
          min: 0.015s max: 0.017s std dev: 0.00047s window: 60
  average rate: 62.476
          min: 0.015s max: 0.018s std dev: 0.00045s window: 122
  average rate: 62.514
          min: 0.014s max: 0.020s std dev: 0.00057s window: 185
  average rate: 62.506
          min: 0.013s max: 0.020s std dev: 0.00061s window: 248

• rosmsg

  $rosmsg show geometry_msgs/Twist
  geometry_msgs/Vector3 linear
    float64 x
    float64 y
    float64 z
  geometry_msgs/Vector3 angular
    float64 x
    float64 y
    float64 z

• rosbag

  将ROS系统运行过程中的数据录制到一个.bag文件中，然后可以通过回放数据来重现相似的运行过程.退出录制时按Ctrl-C退出该命令，你应该会看到在当前目录下一个以年份、日期和时间命名并以.bag作为后缀的文件。

  #录制所有发布的话题,其中 -a 选项，该选项表示将当前发布的所有话题数据都录制保存到一个bag文件中。
  $ rosbag record -a
  #回放bag文件以再现系统运行过程
  $ rosbag play <your bagfile>
  #以某一频率发布消息(控制bag包播放的频率) : rosbag play -r 2
  #从某一时间节点开始播放发布消息 : rosbag play -s 2
  $ rosbag info <your bagfile>  #rosbag info 查看bag文件信息
  $ rosbag record -O 2018-12.bag  /turtle1/command_velocity /turtle1/pose
  #rosbag record命令支持只录制某些特别指定的话题到单个bag文件中，这样就允许用户只录制他们感兴趣的话题
  $ rosbag record -a -O 2018-12.bag
  #可以使用rosbag info 2018-12.bag 命令查看录制时指定话题的信息.
  #也可以只指定bag包的文件名，录制所有数据
  $ rosbag record --split --duration=5m -e /radar/back_targets /vehicle_speed /imu_data
  #录取指定topic，并且每五分钟分割一次, -e为正则匹配。
  $ rosrun image_view image_view image:=/camera/front_middle compressed
  #如果查看视频，就可以实现视频播放功能

创建工作空间和功能包

工程文件 workspace

四个文件夹：

• src代码空间
• build编译空间
• devel开发空间
• install安装空间

#创建工作空间
$ mkdir -p ~/catkin_ws/src
$ cd ~/catkin_ws/src
$ catkin_init_workspace
#编译工作空间
$ cd ~/catkin_ws/
$ catkin_make
$ catkin_make install
#设置环境变量
$ source devel/setup.bash
#检查环境变量
$ echo $ROS_PACKAGE_PATH
home/qxd/catkin_ws/src:/opt/ros/melodic/share
#创建功能包
$ cd ~/catkin_ws/src
$ catkin_create_pkg test_pkg std_msgs rospy roscpp
eg： $ catkin_create_pkg 包名 依赖名 依赖名 依赖名 ...
#编译功能包
$ cd ~/catkin_ws
$ catkin_make
$ source ~/catkin_ws/devel/setup.bash

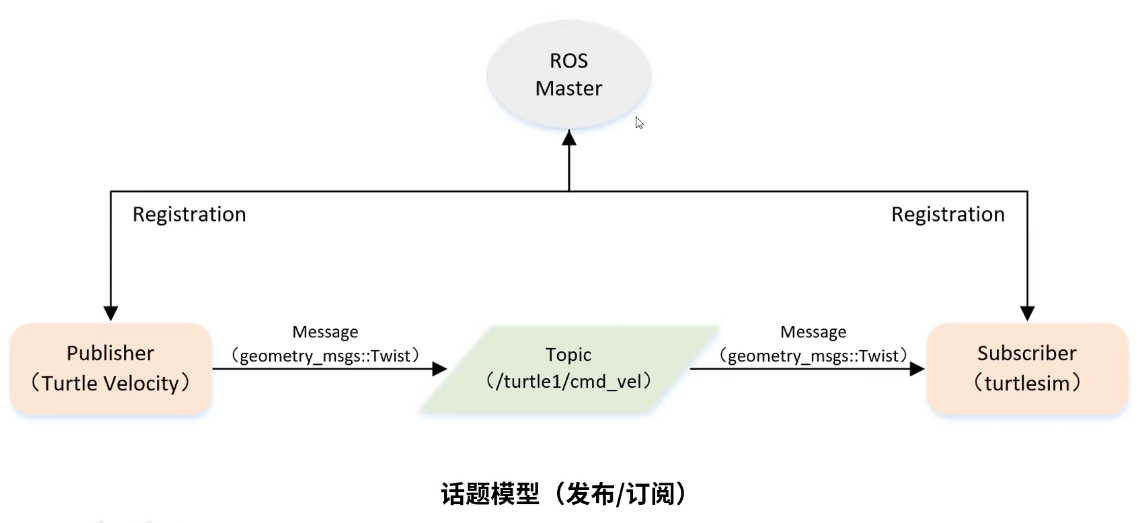

发布者publisher编程实现

#创建功能包
$ cd ~/catkin_ws/src
$ catkin_create_pkg learning_topic std_msgs rospy roscpp geometry_msgs turtlesim

代码放到src目录

创建一个.cpp文件即可，注意文件名不能重复！！

/**
 * 该程序将发布turtle1/cmd_vel话题，消息类型geometry——msgs::Twist
 */
#include<ros/ros.h>
#include<geometry_msgs/Twist.h>

int main(int argc,char **argv)
{
        //ROS节点初始化
        ros::init(argc,argv,"velocity_publisher");

        //创建节点句柄
        ros::NodeHandle n;

        //创建一个Publisher，发布名为/turtle1/cmd_vel的topic，消息类型为geometry——msgs::Twist，队列长度10
        ros::Publisher turtle_vel_pub = n.advertise<geometry_msgs::Twist>("/turtle1/cmd_vel",10);

        //设置循环频率
        ros::Rate loop_rate(10);

        int count = 0;
        while(ros::ok())
        {
                //初始化geometry_msgs::Twist类型的消息
                geometry_msgs::Twist vel_msg;
                vel_msg.linear.x = 0.5;
                vel_msg.angular.z = 0.2;

                //发布消息
                turtle_vel_pub.publish(vel_msg);
                ROS_INFO("Publsh turtle velocity command[%0.2f m/s,%0.2f rad/s]",
vel_msg.linear.x,vel_msg.angular.z);

                //按照循环频率延时
                loop_rate.sleep();
        }
    return 0;
}

接下来需要编译运行,需要配置CMakeLists.txt中的编译规则

cmake_minimum_required(VERSION 3.0.2)
project(learning_topic)

## Compile as C++11, supported in ROS Kinetic and newer
# add_compile_options(-std=c++11)

## Find catkin macros and libraries
## if COMPONENTS list like find_package(catkin REQUIRED COMPONENTS xyz)
## is used, also find other catkin packages
find_package(catkin REQUIRED COMPONENTS
  geometry_msgs
  roscpp
  rospy
  std_msgs
  turtlesim
  message_generation
)

## System dependencies are found with CMake's conventions
# find_package(Boost REQUIRED COMPONENTS system)


## Uncomment this if the package has a setup.py. This macro ensures
## modules and global scripts declared therein get installed
## See http://ros.org/doc/api/catkin/html/user_guide/setup_dot_py.html
# catkin_python_setup()

################################################
## Declare ROS messages, services and actions ##
################################################

## To declare and build messages, services or actions from within this
## package, follow these steps:
## * Let MSG_DEP_SET be the set of packages whose message types you use in
##   your messages/services/actions (e.g. std_msgs, actionlib_msgs, ...).
## * In the file package.xml:
##   * add a build_depend tag for "message_generation"
##   * add a build_depend and a exec_depend tag for each package in MSG_DEP_SET
##   * If MSG_DEP_SET isn't empty the following dependency has been pulled in
##     but can be declared for certainty nonetheless:
##     * add a exec_depend tag for "message_runtime"
## * In this file (CMakeLists.txt):
##   * add "message_generation" and every package in MSG_DEP_SET to
##     find_package(catkin REQUIRED COMPONENTS ...)
##   * add "message_runtime" and every package in MSG_DEP_SET to
##     catkin_package(CATKIN_DEPENDS ...)
##   * uncomment the add_*_files sections below as needed
##     and list every .msg/.srv/.action file to be processed
##   * uncomment the generate_messages entry below
##   * add every package in MSG_DEP_SET to generate_messages(DEPENDENCIES ...)

## Generate messages in the 'msg' folder
# add_message_files(
#   FILES
#   Message1.msg
#   Message2.msg
# )

## Generate services in the 'srv' folder
# add_service_files(
#   FILES
#   Service1.srv
#   Service2.srv
# )

## Generate actions in the 'action' folder
# add_action_files(
#   FILES
#   Action1.action
#   Action2.action
# )

## Generate added messages and services with any dependencies listed here
# generate_messages(
#   DEPENDENCIES
#   geometry_msgs#   std_msgs
# )

add_message_files(FILES Person.msg)
generate_messages(DEPENDENCIES std_msgs)

################################################
## Declare ROS dynamic reconfigure parameters ##
################################################

## To declare and build dynamic reconfigure parameters within this
## package, follow these steps:
## * In the file package.xml:
##   * add a build_depend and a exec_depend tag for "dynamic_reconfigure"
## * In this file (CMakeLists.txt):
##   * add "dynamic_reconfigure" to
##     find_package(catkin REQUIRED COMPONENTS ...)
##   * uncomment the "generate_dynamic_reconfigure_options" section below
##     and list every .cfg file to be processed

## Generate dynamic reconfigure parameters in the 'cfg' folder
# generate_dynamic_reconfigure_options(
#   cfg/DynReconf1.cfg
#   cfg/DynReconf2.cfg
# )

###################################
## catkin specific configuration ##
###################################
## The catkin_package macro generates cmake config files for your package
## Declare things to be passed to dependent projects
## INCLUDE_DIRS: uncomment this if your package contains header files
## LIBRARIES: libraries you create in this project that dependent projects also need
## CATKIN_DEPENDS: catkin_packages dependent projects also need
## DEPENDS: system dependencies of this project that dependent projects also need
catkin_package(
#  INCLUDE_DIRS include
#  LIBRARIES learning_topic
#  CATKIN_DEPENDS geometry_msgs roscpp rospy std_msgs turtlesim
#  DEPENDS system_lib
        message_runtime
)


###########
## Build ##
###########

## Specify additional locations of header files
## Your package locations should be listed before other locations
include_directories(
# include
  ${catkin_INCLUDE_DIRS}
)

## Declare a C++ library
# add_library(${PROJECT_NAME}
#   src/${PROJECT_NAME}/learning_topic.cpp
# )

## Add cmake target dependencies of the library
## as an example, code may need to be generated before libraries
## either from message generation or dynamic reconfigure
# add_dependencies(${PROJECT_NAME} ${${PROJECT_NAME}_EXPORTED_TARGETS} ${catkin_EXPORTED_TARGETS})

## Declare a C++ executable
## With catkin_make all packages are built within a single CMake context
## The recommended prefix ensures that target names across packages don't collide
# add_executable(${PROJECT_NAME}_node src/learning_topic_node.cpp)

## Rename C++ executable without prefix
## The above recommended prefix causes long target names, the following renames the
## target back to the shorter version for ease of user use
## e.g. "rosrun someones_pkg node" instead of "rosrun someones_pkg someones_pkg_node"
# set_target_properties(${PROJECT_NAME}_node PROPERTIES OUTPUT_NAME node PREFIX "")

## Add cmake target dependencies of the executable
## same as for the library above
# add_dependencies(${PROJECT_NAME}_node ${${PROJECT_NAME}_EXPORTED_TARGETS} ${catkin_EXPORTED_TARGETS})

## Specify libraries to link a library or executable target against
# target_link_libraries(${PROJECT_NAME}_node
#   ${catkin_LIBRARIES}
# )

#将velocity_publisher.cpp编译成velocity_publisher可执行文件
add_executable(velocity_publisher src/velocity_publisher.cpp)

#对velocity_publisher做可执行文件的链接
target_link_libraries(velocity_publisher ${catkin_LIBRARIES})

add_executable(pose_subscriber src/pose_subscriber.cpp)
target_link_libraries(pose_subscriber ${catkin_LIBRARIES})



#############
## Install ##
#############

# all install targets should use catkin DESTINATION variables
# See http://ros.org/doc/api/catkin/html/adv_user_guide/variables.html

## Mark executable scripts (Python etc.) for installation
## in contrast to setup.py, you can choose the destination
# catkin_install_python(PROGRAMS
#   scripts/my_python_script
#   DESTINATION ${CATKIN_PACKAGE_BIN_DESTINATION}
# )

## Mark executables for installation
## See http://docs.ros.org/melodic/api/catkin/html/howto/format1/building_executables.html
# install(TARGETS ${PROJECT_NAME}_node
#   RUNTIME DESTINATION ${CATKIN_PACKAGE_BIN_DESTINATION}
# )

## Mark libraries for installation
## See http://docs.ros.org/melodic/api/catkin/html/howto/format1/building_libraries.html
# install(TARGETS ${PROJECT_NAME}
#   ARCHIVE DESTINATION ${CATKIN_PACKAGE_LIB_DESTINATION}
#   LIBRARY DESTINATION ${CATKIN_PACKAGE_LIB_DESTINATION}
#   RUNTIME DESTINATION ${CATKIN_GLOBAL_BIN_DESTINATION}
# )

## Mark cpp header files for installation
# install(DIRECTORY include/${PROJECT_NAME}/
#   DESTINATION ${CATKIN_PACKAGE_INCLUDE_DESTINATION}
#   FILES_MATCHING PATTERN "*.h"
#   PATTERN ".svn" EXCLUDE
# )

## Mark other files for installation (e.g. launch and bag files, etc.)
# install(FILES
#   # myfile1
#   # myfile2
#   DESTINATION ${CATKIN_PACKAGE_SHARE_DESTINATION}
# )

#############
## Testing ##
#############

## Add gtest based cpp test target and link libraries
# catkin_add_gtest(${PROJECT_NAME}-test test/test_learning_topic.cpp)
# if(TARGET ${PROJECT_NAME}-test)
#   target_link_libraries(${PROJECT_NAME}-test ${PROJECT_NAME})
# endif()

## Add folders to be run by python nosetests
# catkin_add_nosetests(test)

接下来就可以编译,在你的工作空间的src下

$ catkin_make

设置环境变量

source devel/setup.bash

也可以在主文件夹下

cd /
ls -a
vim .bashrc
#最后一行添加  source /home/qxd/catkin_ws/devel/setup.bash

接下来就可以执行

$ roscore
$ rosrun turtlesim turtlesim_node
$ rosrun learning_topic velocity_publisher

也可用python来完成,首行注意添加 #!/usr/bin/env python

#!/usr/bin/env python
import rospy
from geometry_msgs.msg import Twist

def velocity_publisher():
    #ROS
    rospy.init_node('velocity_publisher',anonymous=True)

    turtle_vel_pub = rospy.Publisher('/turtle1/cmd_vel',Twist,queue_size=10)

    rate = rospy.Rate(10)
    while not rospy.is_shutdown():
        vel_msg = Twist()
        vel_msg.linear.x = 0.5
        vel_msg.angular.z = 0.2

        turtle_vel_pub.publish(vel_msg)
        rospy.loginfo("Publish turtle velocity command[%0.2f m/s,%0.2f rad/s]",
                vel_msg.linear.x,vel_msg.angular.z)
        rate.sleep()

if __name__ == '__main__':
    try:
        velocity_publisher()
    except rospy.ROSInterruptException:
        pass

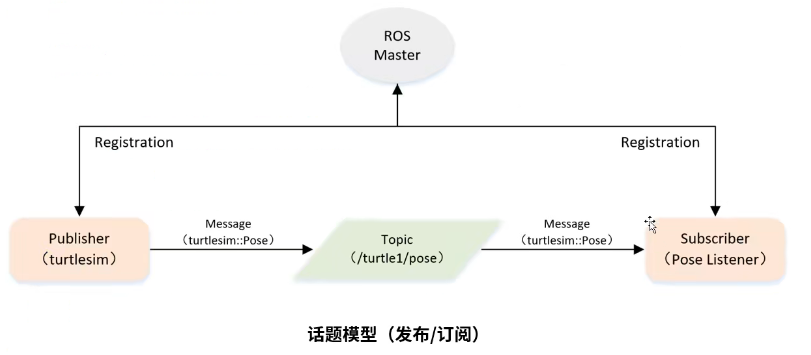

订阅者subscriber的编程实现

项目工程文件夹下src中创建代码

//pose_subscriber.CPP
/**
 * this program will subscribe /turtle/pose topic,message type is turtlesim::pose
 */

#include<ros/ros.h>
#include"turtlesim/Pose.h"

//recived the subscribe,then will go into the function that message recall
void poseCallback(const turtlesim::Pose::ConstPtr& msg)
{
    ROS_INFO("Turtle pose: x:%0.6f,y:%0.6f",msg->x,msg->y);
}

int main(int argc,char **argv)
{
    //初始化ROS节点
    ros::init(argc,argv,"pose_subscriber");

    //创建节点句柄
    ros::NodeHandle n;

    //创建一个Subscriber，订阅名为/turtle1/pose的topic,注册回调函数poseCallback
    ros::Subscriber pose_sub = n.subscribe("/turtle1/pose",10,poseCallback);

    //循环等待回调函数
    ros::spin();
    return 0;
}

编译执行过程同发布者

#!/usr/bin/env python
#-*- coding: utf-8 -*-
#该例程将订阅/turtle1/pose话题，消息类型turtlesim::Pose

import rospy
from turtlesim.msg import Pose

def poseCallback(msg):
    rospy.loginfo("Turtle pose: x:%0.6f,y:%0.6f",msg.x,msg.y)
def pose_subscriber():
    rospy.init_node('pose_subscriber',anonymous=True)

    rospy.Subscriber("/turtle1/pose",Pose,poseCallback)

    rospy.spin()
if __name__ == '__main__':
    pose_subscriber()

话题消息定义与使用

如何自定义一个话题的消息

• 定义msg文件

  在项目文件夹下创建一个msg文件夹，专门存放.msg文件,不能随便命名

  string name
  uint8 sex
  uint8 age

  uint8 unknown = 0
  uint8 male = 1
  uint8 female =2

• 在package.xml中添加功能包依赖

  <build_depend>message_generation</build_depend>
  <exec_depend>message_runtime</exec_depend>

• 在CMakeList.txt添加编译选项

  ## Find catkin macros and libraries
  ## if COMPONENTS list like find_package(catkin REQUIRED COMPONENTS xyz)
  ## is used, also find other catkin packages
  find_package(catkin REQUIRED COMPONENTS
    geometry_msgs
    roscpp
    rospy
    std_msgs
    turtlesim
    message_generation   #添加功能包
   )

  ## Generate added messages and services with any dependencies listed here
  # generate_messages(
  #   DEPENDENCIES
  #   geometry_msgs#   std_msgs
  # )
  add_message_files(FILES Person.msg)
  generate_messages(DEPENDENCIES std_msgs)


  ###################################
  ## catkin specific configuration ##
  ###################################
  ## The catkin_package macro generates cmake config files for your package
  ## Declare things to be passed to dependent projects
  ## INCLUDE_DIRS: uncomment this if your package contains header files
  ## LIBRARIES: libraries you create in this project that dependent projects also need
  ## CATKIN_DEPENDS: catkin_packages dependent projects also need
  ## DEPENDS: system dependencies of this project that dependent projects also need
  catkin_package(
  #  INCLUDE_DIRS include
  #  LIBRARIES learning_topic
     CATKIN_DEPENDS geometry_msgs roscpp rospy std_msgs turtlesim message_runtime  #添加此处
  #  DEPENDS system_lib
  )

• 最后直接编译catkin_make编译即可

​

客户端Client的编程实现

• 创建一个新的功能包文件夹

  $ cd ~/catkin_ws/src
  $ catkin_create_pkg learnin_service roscpp rospy std_msgs geometry_msgs turtlesim

• 在learnin_service的src下创建cpp代码

  /**

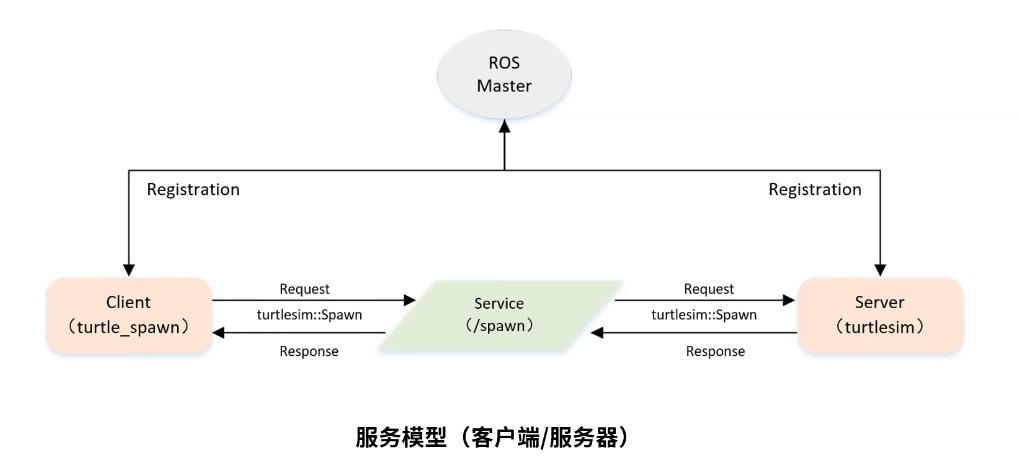

  *该程序将请求/spawn服务，服务数据类型turtlesim::Spawn
  */
  #include<ros/ros.h>
  #include<turtlesim/Spawn.h>

  int main(int argc,char **argv)
  {
      //初始化ROS节点
      ros::init(argc,argv,"turtle_spawn");

      //创建节点句柄
      ros::NodeHandle node;

      //发现/spawn服务后，创建一个服务客户端，连接名为/spawn的service
      ros::service::waitForService("/spawn");  //循环等待
      ros::ServiceClient add_turtle = node.serviceClient<turtlesim::Spawn>("/spawn");

      //初始化turtlesim::Spawn的请求数据
      turtlesim::Spawn srv;
      srv.request.x = 2.0;
      srv.request.y = 2.0;
      srv.request.name = "turtle2";

      //请求服务调用
      ROS_INFO("Call service to spwan turtle[x:%0.6f,y:%0.6f,name:%s]",srv.request.x,srv.request.y,srv.request.name.c_str());

      add_turtle.call(srv);

      //显示服务调用结果
      ROS_INFO("Spwan turtle successfully [name:%s]",srv.response.name.c_str());

      return 0;
  }

  配置编译规则CMakeList.txt

  add_executable(turtle_spawn src/turtle_spawn.cpp) //设置需要编译的代码和生成的可执行文件；
  target_link_libraries(turtle_spawn ${catkin_LIBRARIES}) //设置链接库；

  回到根目录/catkin_ws编译并运行客户端

  编译成功后在devel/lib下产生功能包

服务端Server的编程实现

​ 在src下turtle_command_server.cpp

/**

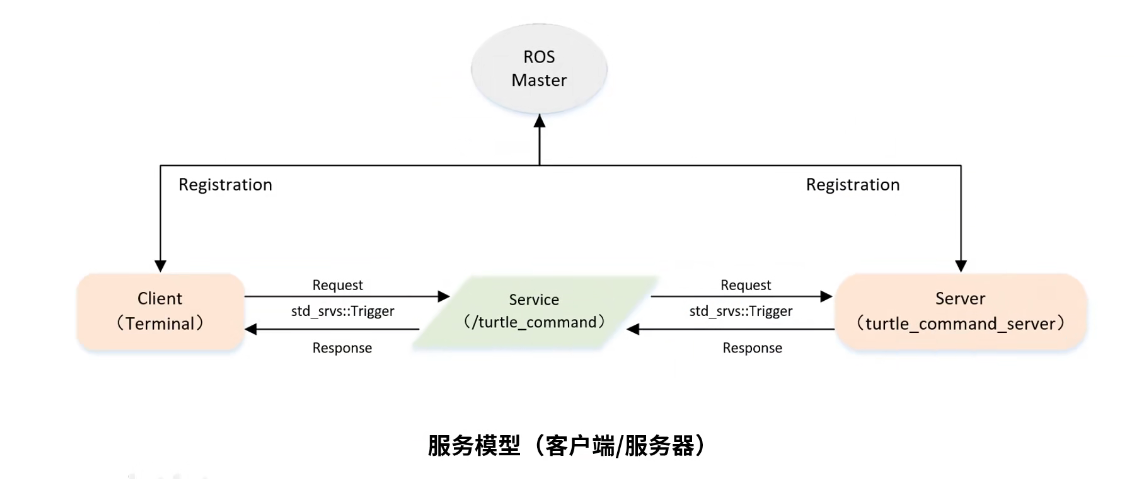

 * 该程序将执行/turtle_command服务，服务数据类型td_srvs/Trigger
 */
#include <ros/ros.h>
#include <geometry_msgs/Twist.h>
#include <std_srvs/Trigger.h>

ros::Publisher turtle_vel_pub;
bool pubCommand = false;

// service回调函数，输入参数req，输出参数res
bool commandCallback(std_srvs::Trigger::Request  &req,
         			std_srvs::Trigger::Response &res)
{
	pubCommand = !pubCommand;

    //显示请求数据
    ROS_INFO("Publish turtle velocity command [%s]", pubCommand==true?"Yes":"No");

	//设置反馈数据
	res.success = true;
	res.message = "Change turtle command state!"

    return true;
}

int main(int argc, char **argv)
{
    //ROS节点初始化
    ros::init(argc, argv, "turtle_command_server");
    //创建节点"把手"
    ros::NodeHandle n;
    //创建一个名为turtle_command的erver，注册回调函数ommandCallback
    ros::ServiceServer command_service = n.advertiseService("/turtle_command", commandCallback);
	// 创建一个Publisher,发布名为turtle1/cmd_vel的topic消息类型为geometry_msgs::Twist，队列长度为10
	turtle_vel_pub = n.advertise<geometry_msgs::Twist>("/turtle1/cmd_vel", 10);
    //循环等待回调函数
    ROS_INFO("Ready to receive turtle command.");
	//设置循环的频率
	ros::Rate loop_rate(10);
	while(ros::ok())
	{
		//查看一次回调函数队列
    	ros::spinOnce();
		//如果标志为true，则发布速度指令
		if(pubCommand)
		{
			geometry_msgs::Twist vel_msg;
			vel_msg.linear.x = 0.5;
			vel_msg.angular.z = 0.2;
			turtle_vel_pub.publish(vel_msg);
		}
		//按照循环频率延时
	    loop_rate.sleep();
	}
    return 0;
}

配置CMakeLists

add_executable(turtle_command_server src/turtle_command_server.cpp)
target_link_libraries(turtle_command_server ${catkin_LIBRARIES})

编译运行服务器

$ cd ~/catkin_ws
$ catkin_make
$ source devel/setup.bash
$ roscore
$ rosrun turtlesim turtlesim_node
$ rosrun learning_service turtle_command_server
$ rosservice call /turtle_command "{}"

自定义服务数据

• 定义srv文件

  string name
  uint8 age
  uint8 sex
  uint8 unknown = 0
  uint8 male = 1
  uint8 female = 2
  ---   //之上表示request，之下表示respons
  string result

• 在package.xml中添加功能包依赖

  <build_depend>message_generation</build_depend>
  <exec_depend>message_runtime</exec_depend>

• 在CMakeLists.txt提娜佳编译选项

  find_package( …… message_generation)
  add_service_files(FILES Person.srv)
  generate_messages(DEPENDENCIES std_msgs)
  catkin_package(…… message_runtime)

• 编译生成语言相关文件

• 服务端实现

  /**
   * 该例程将请求/show_person服务，服务数据类型learning_service::Person
   */

  #include <ros/ros.h>
  #include "learning_service/Person.h"

  // service回调函数，输入参数req，输出参数res
  bool personCallback(learning_service::Person::Request  &req,
           			learning_service::Person::Response &res)
  {
      // 显示请求数据
      ROS_INFO("Person: name:%s  age:%d  sex:%d", req.name.c_str(), req.age, req.sex);

  	// 设置反馈数据
  	res.result = "OK";

      return true;
  }

  int main(int argc, char **argv)
  {
      // ROS节点初始化
      ros::init(argc, argv, "person_server");

      // 创建节点句柄
      ros::NodeHandle n;

      // 创建一个名为show_person的erver，注册回调函数ersonCallback
      ros::ServiceServer person_service = n.advertiseService("/show_person", personCallback);

      // 循环等待回调函数
      ROS_INFO("Ready to show person informtion.");
      ros::spin();

      return 0;
  }

• 客户端实现

  /**
   * 该例程将请求/show_person服务，服务数据类型learning_service::Person
   */

  #include <ros/ros.h>
  #include "learning_service/Person.h"

  int main(int argc, char** argv)
  {
      // 初始化ROS节点
  	ros::init(argc, argv, "person_client");

      // 创建节点句柄
  	ros::NodeHandle node;

      // 发现/spawn服务后，创建一个服务客户端，连接名为/spawn的service
  	ros::service::waitForService("/show_person");
  	ros::ServiceClient person_client = node.serviceClient<learning_service::Person>("/show_person");

      // 初始化learning_service::Person的请求数据
  	learning_service::Person srv;
  	srv.request.name = "Tom";
  	srv.request.age  = 20;
  	srv.request.sex  = learning_service::Person::Request::male;

      // 请求服务调用
  	ROS_INFO("Call service to show person[name:%s, age:%d, sex:%d]",
  			 srv.request.name.c_str(), srv.request.age, srv.request.sex);

  	person_client.call(srv);

  	// 显示服务调用结果
  	ROS_INFO("Show person result : %s", srv.response.result.c_str());

  	return 0;
  };

  配置编译规则

  add_executable(person_server src/person_server.cpp)
  target_link_libraries(person_server ${catkin_LIBRARIES})
  add_dependencies(person_server ${PROJECT_NAME}_gencpp)
  add_executable(person_client src/person_client.cpp)
  target_link_libraries(person_client ${catkin_LIBRARIES})
  add_dependencies(person_client ${PROJECT_NAME}_gencpp)

• 运行

  $ cd ~/catkin_ws
  $ catkin_make
  $ source devel/setup.bash
  $ roscore
  $ rosrun learning_service person_server
  $ rosrun learning_service person_client

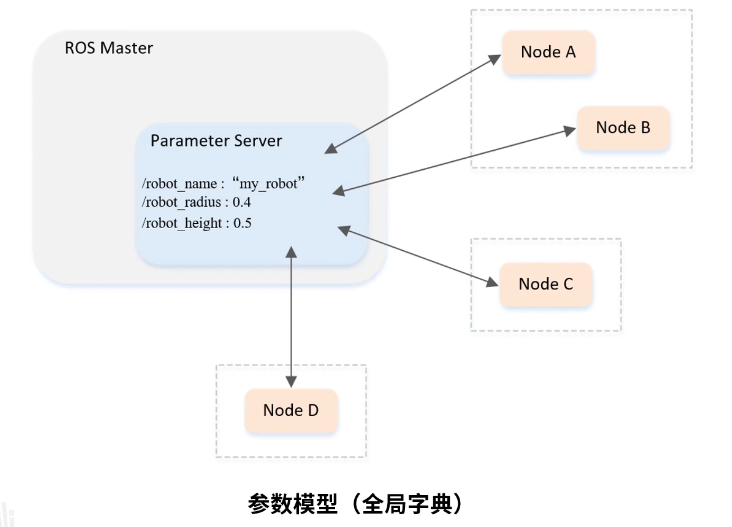

参数的使用与编程方法

• 创建功能包

  $ cd ~/catkin_ws/src
  $ catkin_create_pkg learning_parameter roscpp rospy std_srvs

• 参数命令行使用



  $ rosparam list #列出当前多有参数
  $ rosparam get param_key #显示某个参数值
  $ rosparam set param_key param_value  #设置某个参数值

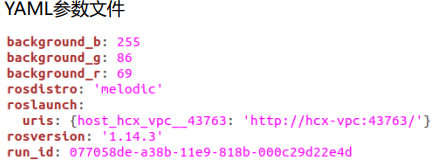

  $ rosparam dump file_name  #保存参数到文件
  $ rosparam load file_name  #从文件读取参数
  $ rosparam delete param_key #删除参数

• 创建parameter_conflg.cpp

  /**
   * 该例程设置/读取海龟例程中的参数
   */
  #include <string>
  #include <ros/ros.h>
  #include <std_srvs/Empty.h>

  int main(int argc, char **argv)
  {
  	int red, green, blue;

      // ROS节点初始化
      ros::init(argc, argv, "parameter_config");

      // 创建节点句柄
      ros::NodeHandle node;

      // 读取背景颜色参数
  	ros::param::get("/background_r", red);
  	ros::param::get("/background_g", green);
  	ros::param::get("/background_b", blue);

  	ROS_INFO("Get Backgroud Color[%d, %d, %d]", red, green, blue);

  	// 设置背景颜色参数
  	ros::param::set("/background_r", 255);
  	ros::param::set("/background_g", 255);
  	ros::param::set("/background_b", 255);

  	ROS_INFO("Set Backgroud Color[255, 255, 255]");

      // 读取背景颜色参数
  	ros::param::get("/background_r", red);
  	ros::param::get("/background_g", green);
  	ros::param::get("/background_b", blue);

  	ROS_INFO("Re-get Backgroud Color[%d, %d, %d]", red, green, blue);

  	// 调用服务，刷新背景颜色
  	ros::service::waitForService("/clear");
  	ros::ServiceClient clear_background = node.serviceClient<std_srvs::Empty>("/clear");
  	std_srvs::Empty srv;
  	clear_background.call(srv);

  	sleep(1);

      return 0;
  }

• 配置CMakeLists参数

  add_executable(parameter_config src/parameter_config.cpp)
  target_link_libraries(parameter_config ${catkin_LIBRARIES})

• 编译运行

  $ cd ~/catkin_ws
  $ catkin_make
  $ source devel/setup.bash
  $ roscore
  $ rosrun turtlesim turtlesim_node
  $ rosrun learning_parameter parameter_config

ROS中的坐标系管理系统

• 机器人中的坐标变换

  TF功能包



  $ sudo apt-get install ros-melodic-turtle-tf

  #roslaunch,启动脚本文件
  $ roslaunch turtle_tf turtle_tf_demo.launch
  $ rosrun turtlesim turtle_teleop_key

  #各种工具

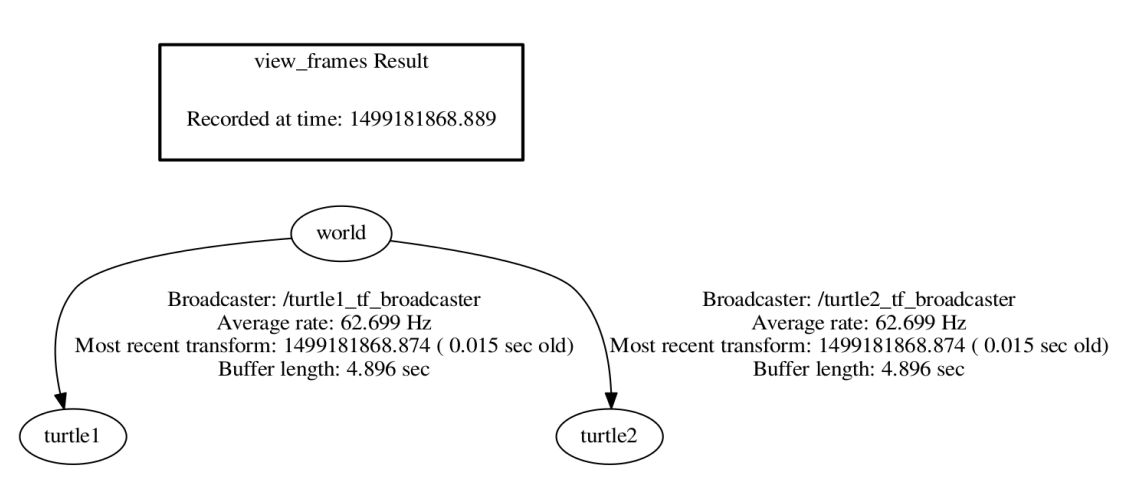

  $ rosrun tf view_frames
  $ rosrun tf tf_echo turtle1 turtle2
  $ rosrun rviz rviz -d `rospack find turtle_tf`/rviz/turtle_rviz.rviz



TF坐标系广播监听的编程管理

• 创建功能包

  $ cd ~/catkin_ws/src
  $ catkin_create_pkg learning_tf roscpp rospy tf turtlesim

• 广播器broadcaster.cpp

  /**
   * 该例程产生tf数据，并计算、发布turtle2的速度指令
   */

  #include <ros/ros.h>
  #include <tf/transform_broadcaster.h>
  #include <turtlesim/Pose.h>

  std::string turtle_name;

  void poseCallback(const turtlesim::PoseConstPtr& msg)
  {
  	// 创建tf的广播器
  	static tf::TransformBroadcaster br;

  	// 初始化tf数据
  	tf::Transform transform;
  	transform.setOrigin( tf::Vector3(msg->x, msg->y, 0.0) );
  	tf::Quaternion q;
  	q.setRPY(0, 0, msg->theta);
  	transform.setRotation(q);

  	// 广播world与海龟坐标系之间的tf数据
  	br.sendTransform(tf::StampedTransform(transform, ros::Time::now(), "world", turtle_name));
  }

  int main(int argc, char** argv)
  {
      // 初始化ROS节点
  	ros::init(argc, argv, "my_tf_broadcaster");

  	// 输入参数作为海龟的名字
  	if (argc != 2)
  	{
  		ROS_ERROR("need turtle name as argument");
  		return -1;
  	}

  	turtle_name = argv[1];

  	// 订阅海龟的位姿话题
  	ros::NodeHandle node;
  	ros::Subscriber sub = node.subscribe(turtle_name+"/pose", 10, &poseCallback);

      // 循环等待回调函数
  	ros::spin();

  	return 0;
  };

• 监听器

  /**
   * 该例程监听tf数据，并计算、发布turtle2的速度指令
   */

  #include <ros/ros.h>
  #include <tf/transform_listener.h>
  #include <geometry_msgs/Twist.h>
  #include <turtlesim/Spawn.h>

  int main(int argc, char** argv)
  {
  	// 初始化ROS节点
  	ros::init(argc, argv, "my_tf_listener");

      // 创建节点句柄
  	ros::NodeHandle node;

  	// 请求产生turtle2
  	ros::service::waitForService("/spawn");
  	ros::ServiceClient add_turtle = node.serviceClient<turtlesim::Spawn>("/spawn");
  	turtlesim::Spawn srv;
  	add_turtle.call(srv);

  	// 创建发布turtle2速度控制指令的发布者
  	ros::Publisher turtle_vel = node.advertise<geometry_msgs::Twist>("/turtle2/cmd_vel", 10);

  	// 创建tf的监听器
  	tf::TransformListener listener;

  	ros::Rate rate(10.0);
  	while (node.ok())
  	{
  		// 获取turtle1与turtle2坐标系之间的tf数据
  		tf::StampedTransform transform;
  		try
  		{
  			listener.waitForTransform("/turtle2", "/turtle1", ros::Time(0), ros::Duration(3.0));
  			listener.lookupTransform("/turtle2", "/turtle1", ros::Time(0), transform);
  		}
  		catch (tf::TransformException &ex)
  		{
  			ROS_ERROR("%s",ex.what());
  			ros::Duration(1.0).sleep();
  			continue;
  		}

  		// 根据turtle1与turtle2坐标系之间的位置关系，发布turtle2的速度控制指令
  		geometry_msgs::Twist vel_msg;
  		vel_msg.angular.z = 4.0 * atan2(transform.getOrigin().y(),
  				                        transform.getOrigin().x());
  		vel_msg.linear.x = 0.5 * sqrt(pow(transform.getOrigin().x(), 2) +
  				                      pow(transform.getOrigin().y(), 2));
  		turtle_vel.publish(vel_msg);

  		rate.sleep();
  	}
  	return 0;
  };

• 编译配置

  add_executable(turtle_tf_broadcaster src/turtle_tf_broadcaster.cpp)
  target_link_libraries(turtle_tf_broadcaster ${catkin_LIBRARIES})

  add_executable(turtle_tf_listener src/turtle_tf_listener.cpp)
  target_link_libraries(turtle_tf_listener ${catkin_LIBRARIES})

• 编译运行

  $ cd ~/catkin_ws
  $ catkin_make
  $ source devel/setup.bash
  $ roscore
  $ rosrun turtlesim turtlesim_node
  #重命名，避免冲突
  $ rosrun learning_tf turtle_tf_broadcaster __name:=turtle1_tf_broadcaster /turtle1
  $ rosrun learning_tf turtle_tf_broadcaster __name:=turtle2_tf_broadcaster /turtle2
  $ rosrun learning_tf turtle_tf_listener
  $ rosrun turtlesim turtle_teleop_key

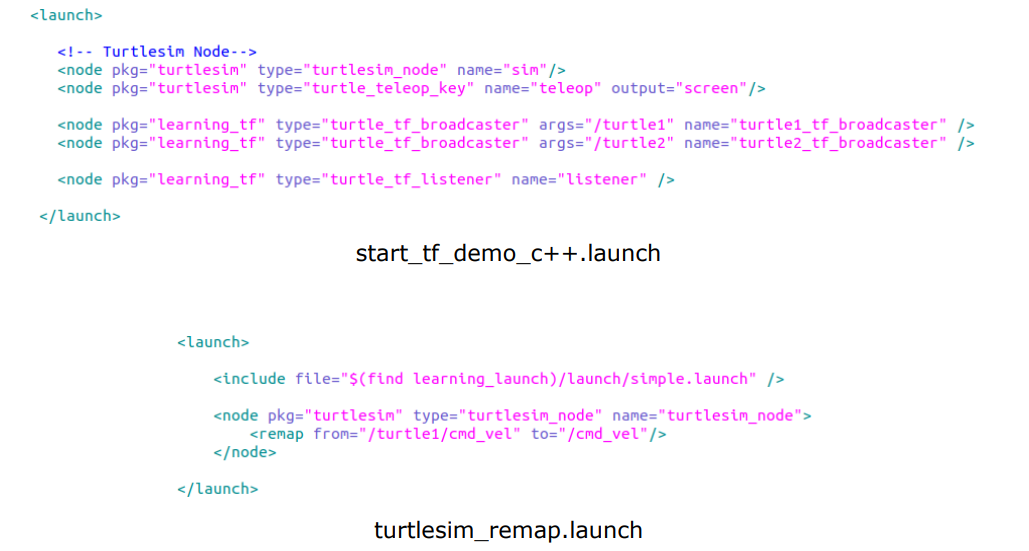

launch启动文件的使用方法

roslaunch/XML - ROS Wiki

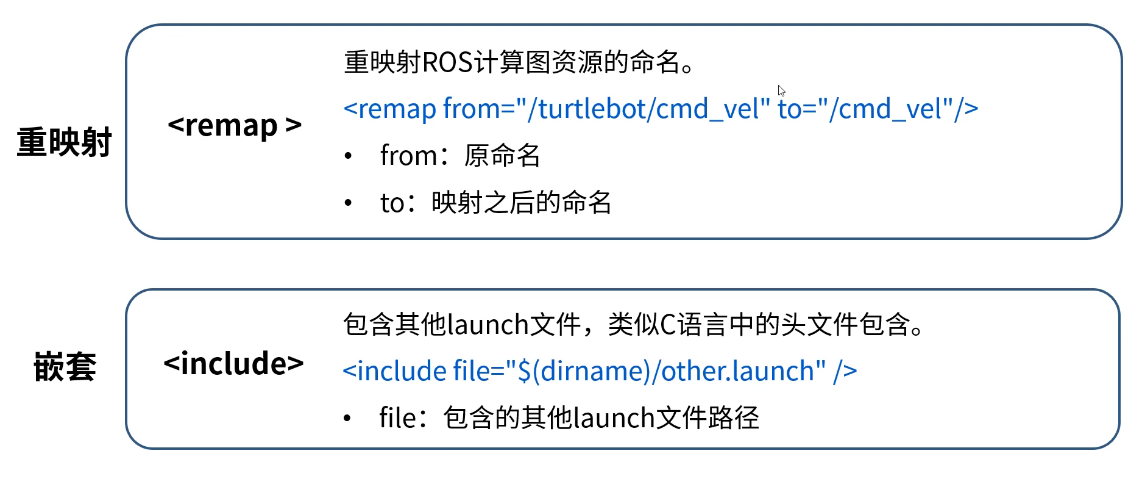

• Launch文件：通过XML文件实现多节点的配置和启动（可自动启动ROS Master）

• node启动节点 ：

  pkg：节点所在的功能包名称

  type：节点的可执行文件名称

  name：节点运行时的名称

  output 、respawn 、required 、ns 、args

  <node pkg="package-name" type="executable-name" name="node-name" />

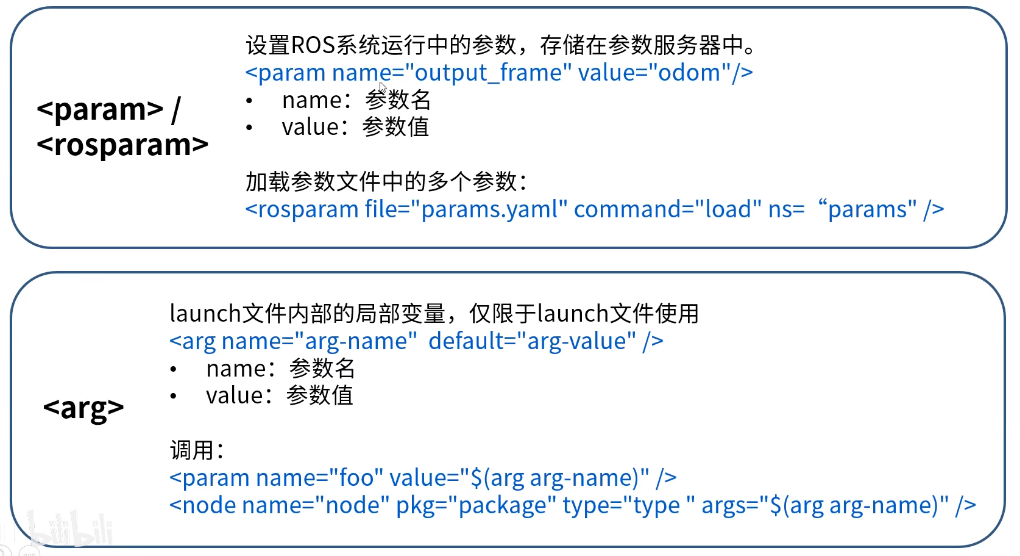

• 参数设置



实例

常用可视化工具

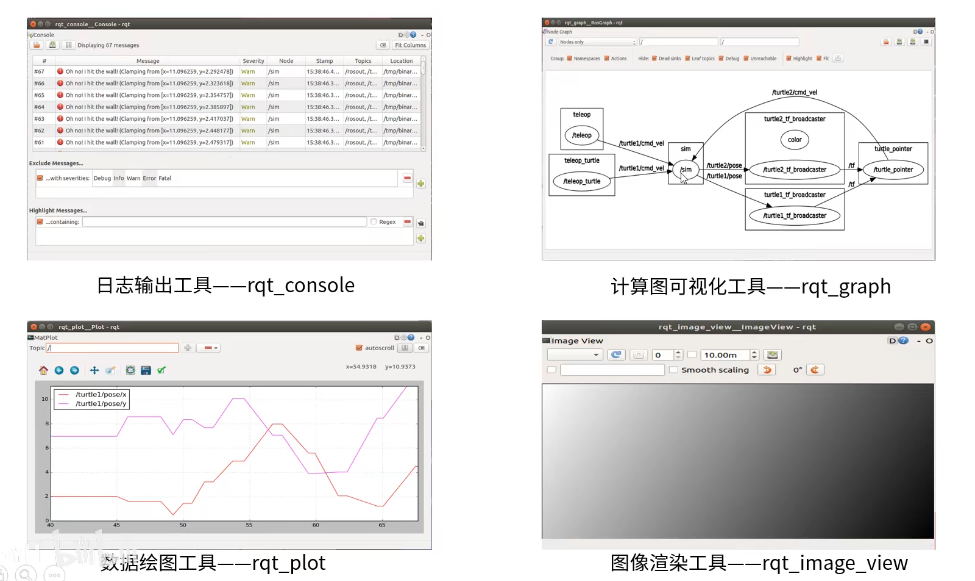

• rqt



  rqt

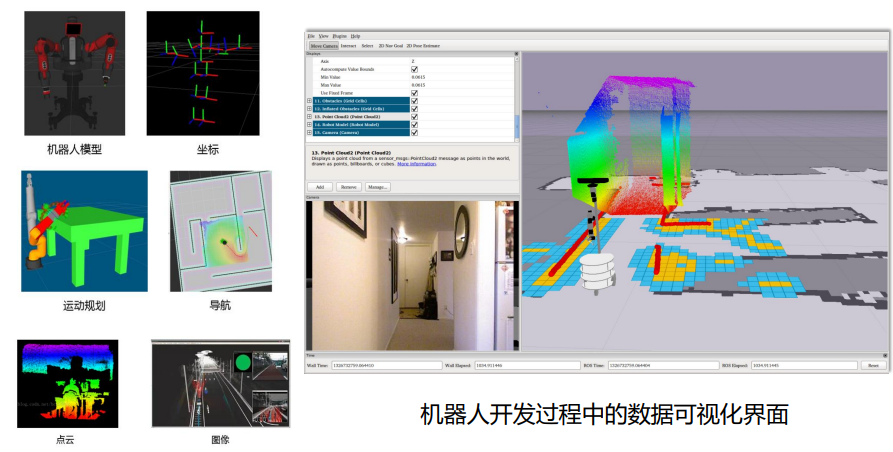

• Rviz



  $ rosrun rviz

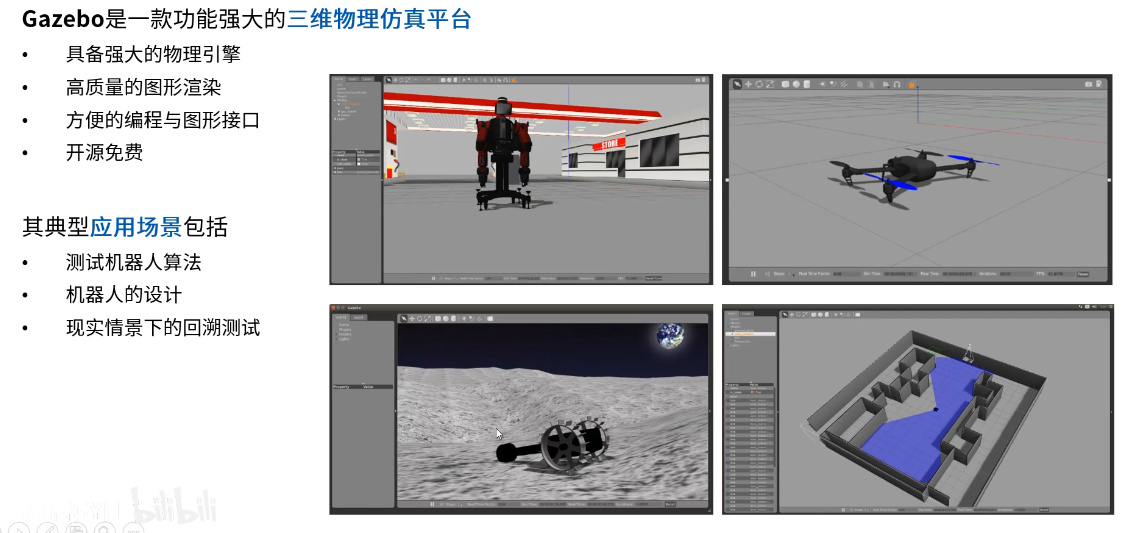

• Gazebo
